Shopify Integration

Multi-touch attribution for Shopify stores. Track the complete customer journey from first click to purchase.

How It Works

The Shopify integration consists of three parts:

1. Theme App Extension - Client-side JavaScript that tracks visitors and stores attribution data in Shopify's cart
2. Checkout Pixel - Tracks checkout events and identifies customers by email
3. Webhook Receiver - Server-side endpoint that receives order webhooks and creates conversions with attribution

Attribution Flow

1. Visitor lands on store (UTM captured, visitor_id set)
2. Visitor browses pages (session tracked)
3. Visitor adds to cart (visitor_id stored in cart attributes)
4. Visitor completes checkout (email captured by pixel)
5. Shopify sends orders/paid webhook (visitor_id in payload)
6. mbuzz creates conversion with full attribution

Installation

Complete all three steps to enable full attribution tracking.

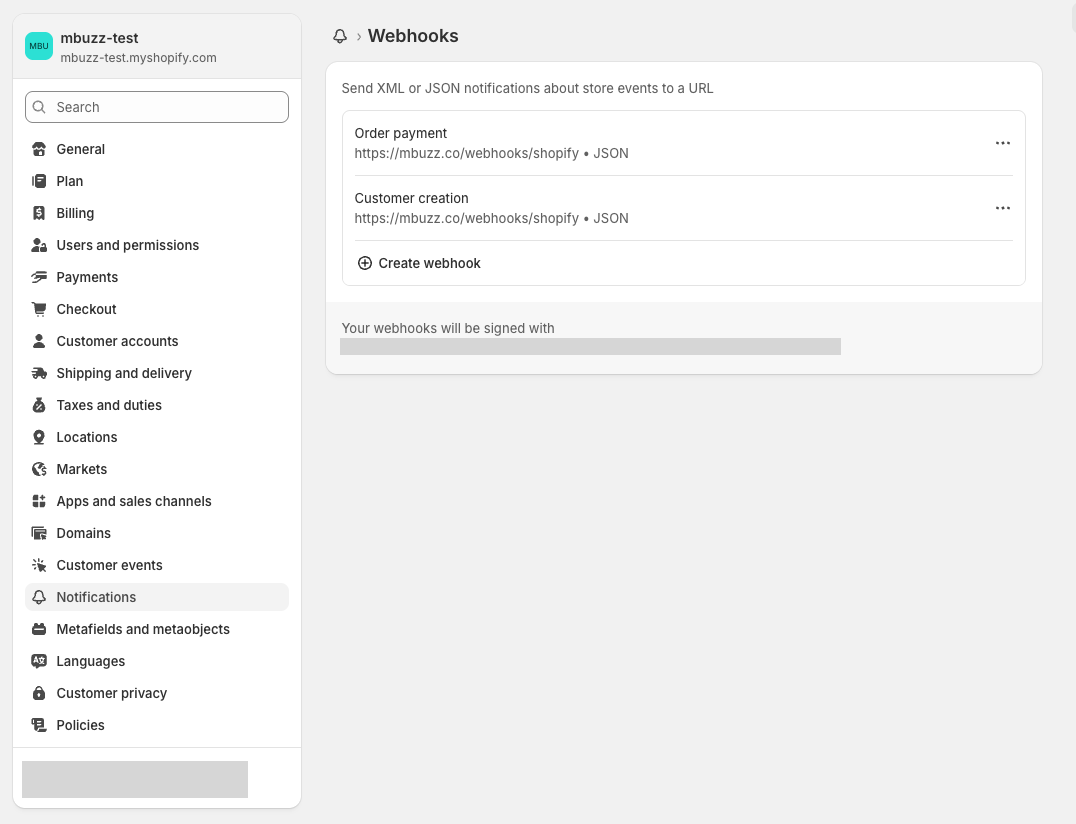

Step 1: Configure Webhooks

Webhooks notify mbuzz when orders are placed so we can record conversions.

1. Go to Settings → Notifications → scroll to Webhooks

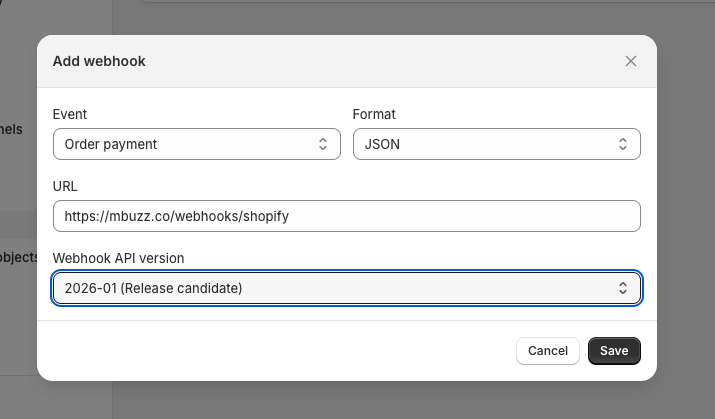

2. Click Create webhook

1. Create the Order payment webhook:
   • Event: Order payment
   • Format: JSON
   • URL: https://mbuzz.co/webhooks/shopify
   • Click Save

1. Repeat for Customer creation webhook (same URL)

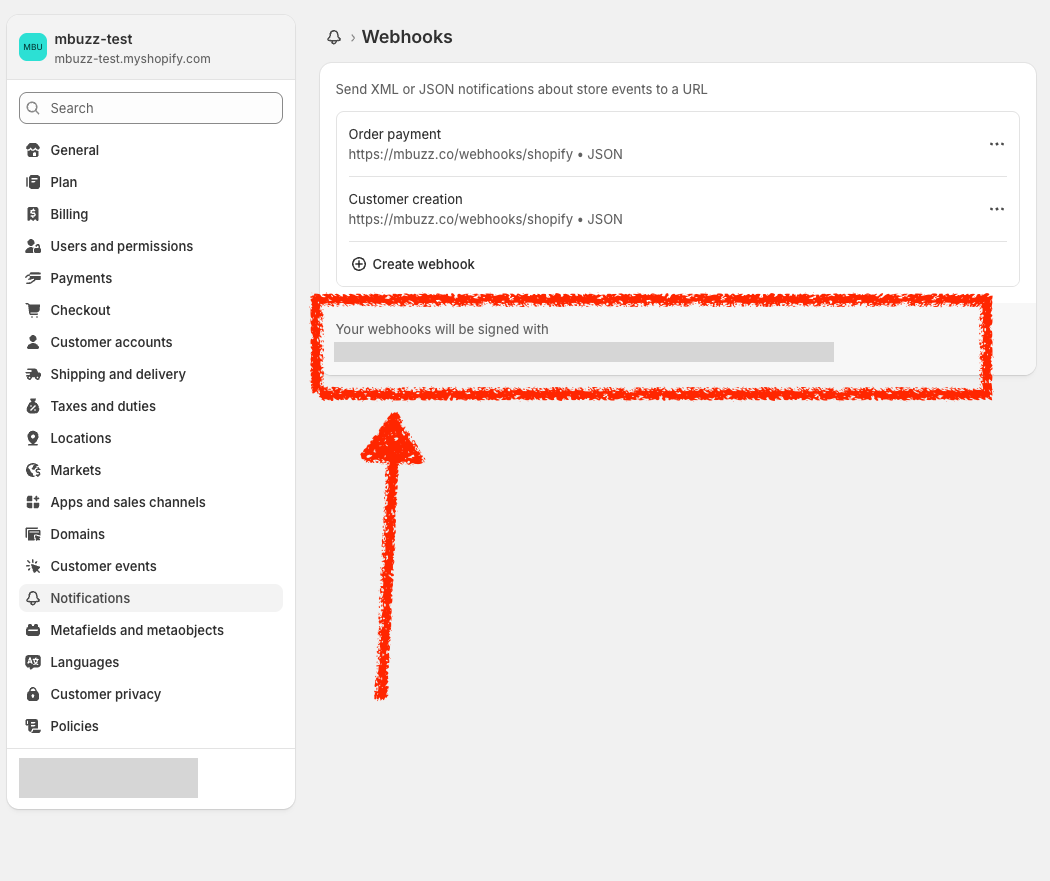

2. Copy the webhook signing secret - you'll need this for mbuzz settings

Step 2: Enable Theme Extension

The theme extension tracks visitor sessions and stores attribution data.

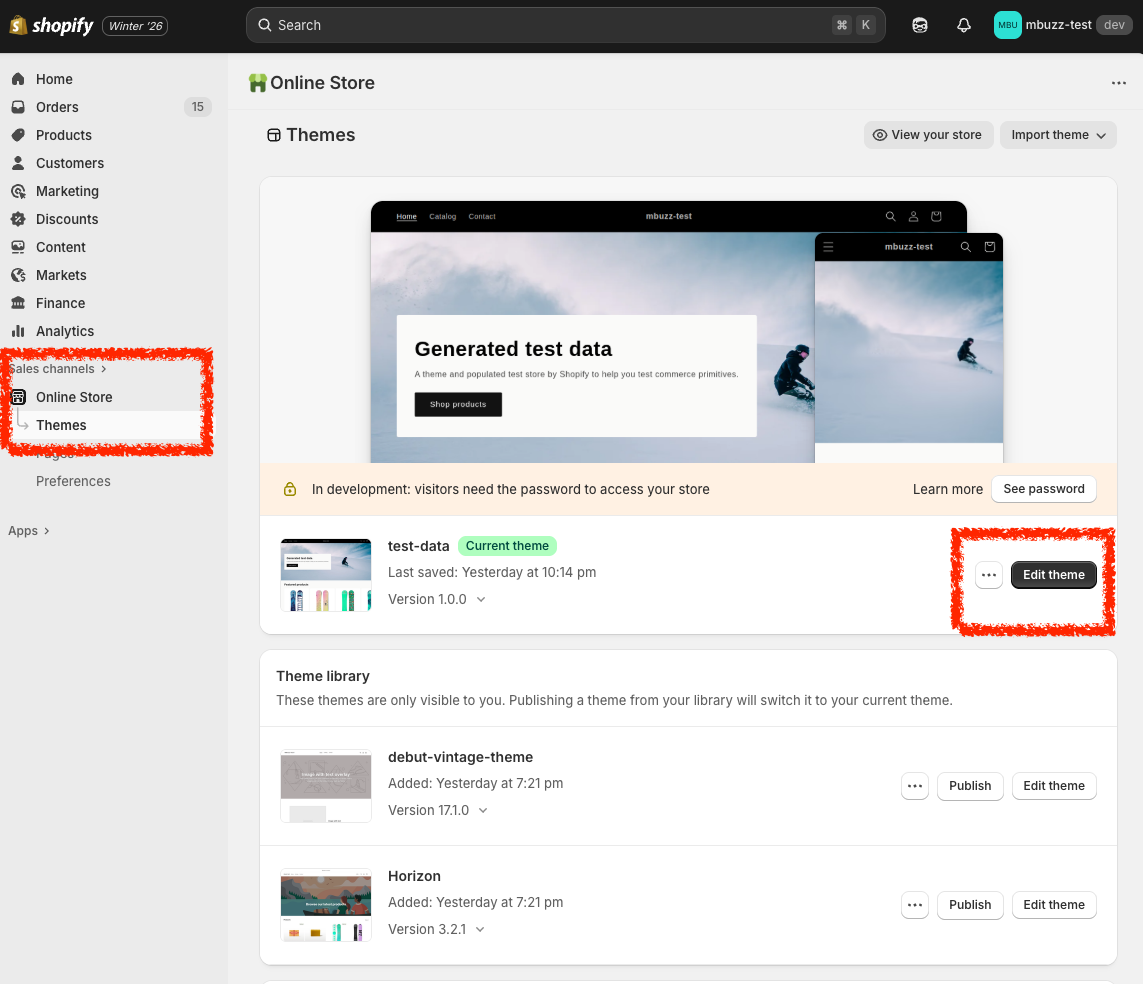

1. Go to Online Store → Themes
2. Click Edit theme on your current theme

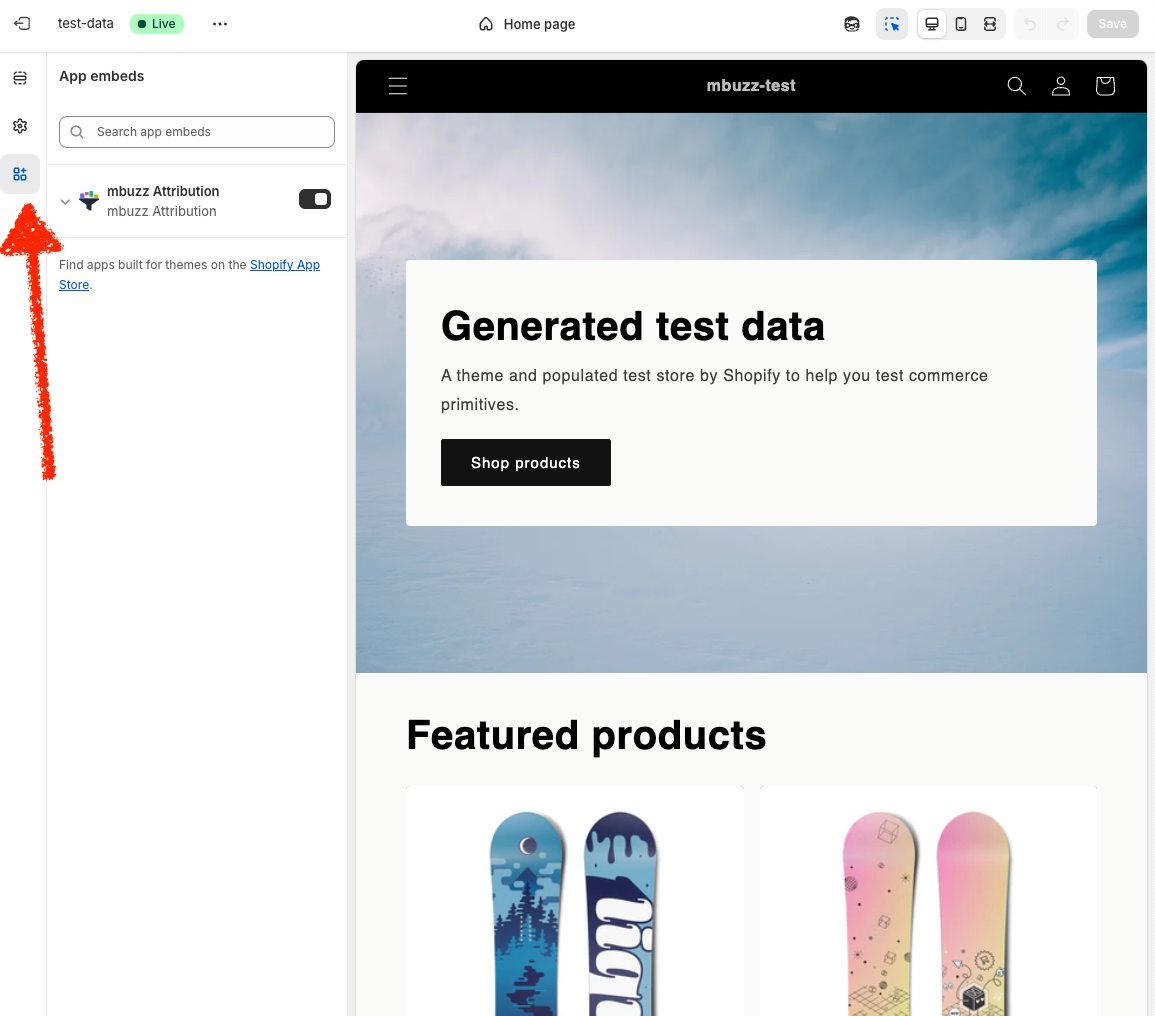

1. Click the App embeds icon in the left sidebar (puzzle piece)
2. Toggle on mbuzz Attribution
3. Enter your mbuzz API key (from your dashboard)
4. Click Save

Step 3: Add Checkout Pixel

The checkout pixel captures customer email for attribution on "Buy it Now" purchases.

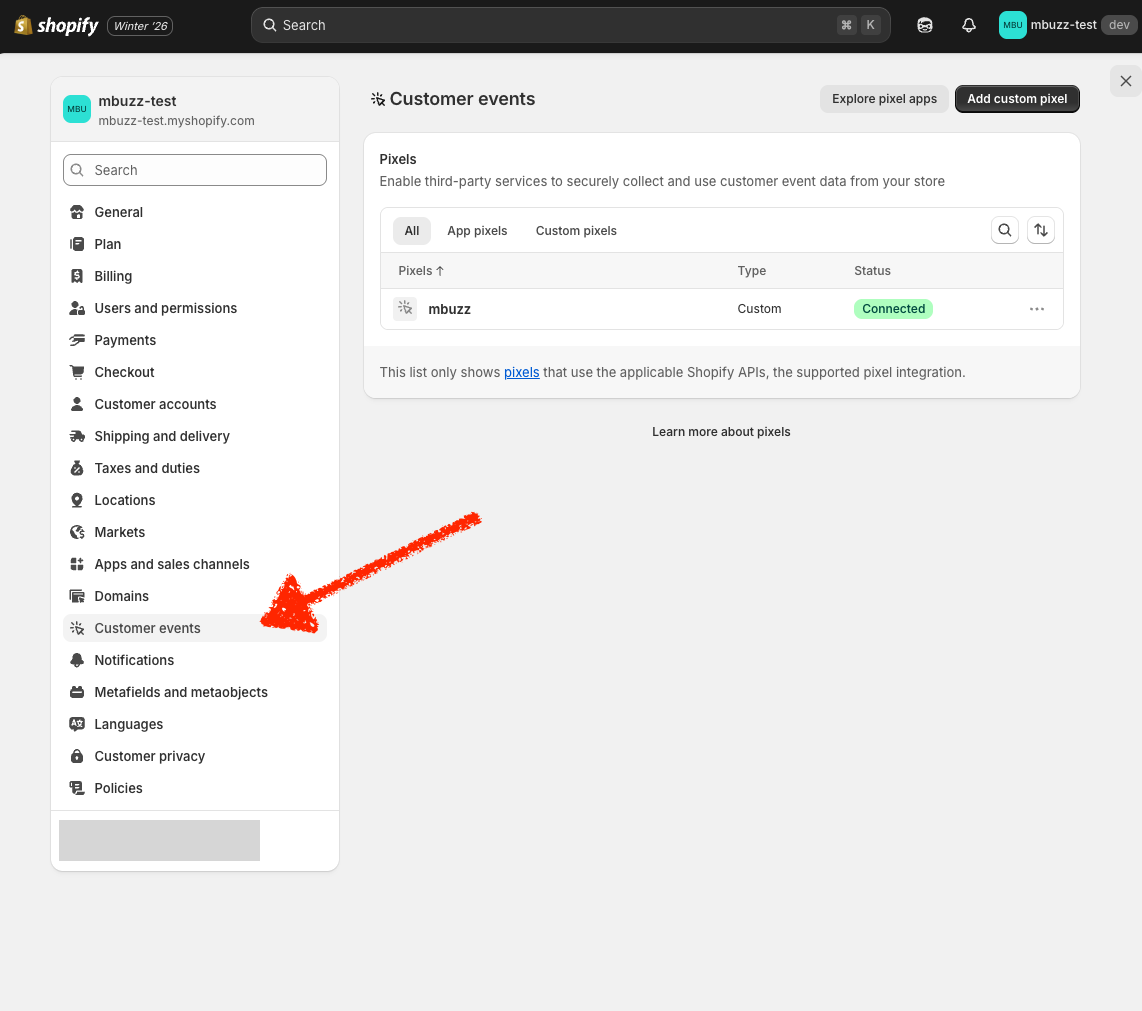

1. Go to Settings → Customer events

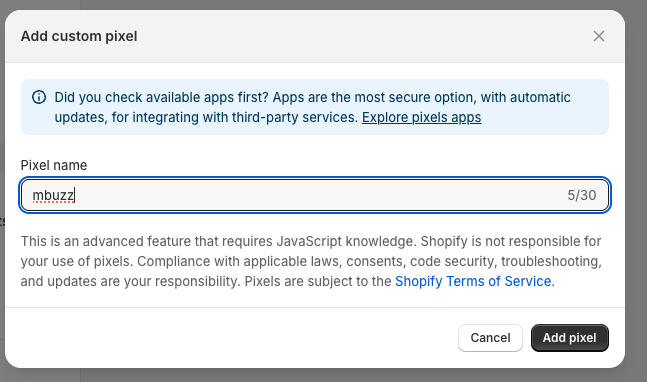

1. Click Add custom pixel
2. Name it mbuzz and click Add pixel

1. Configure permissions:

   • Select Required
   • Check Marketing and Analytics

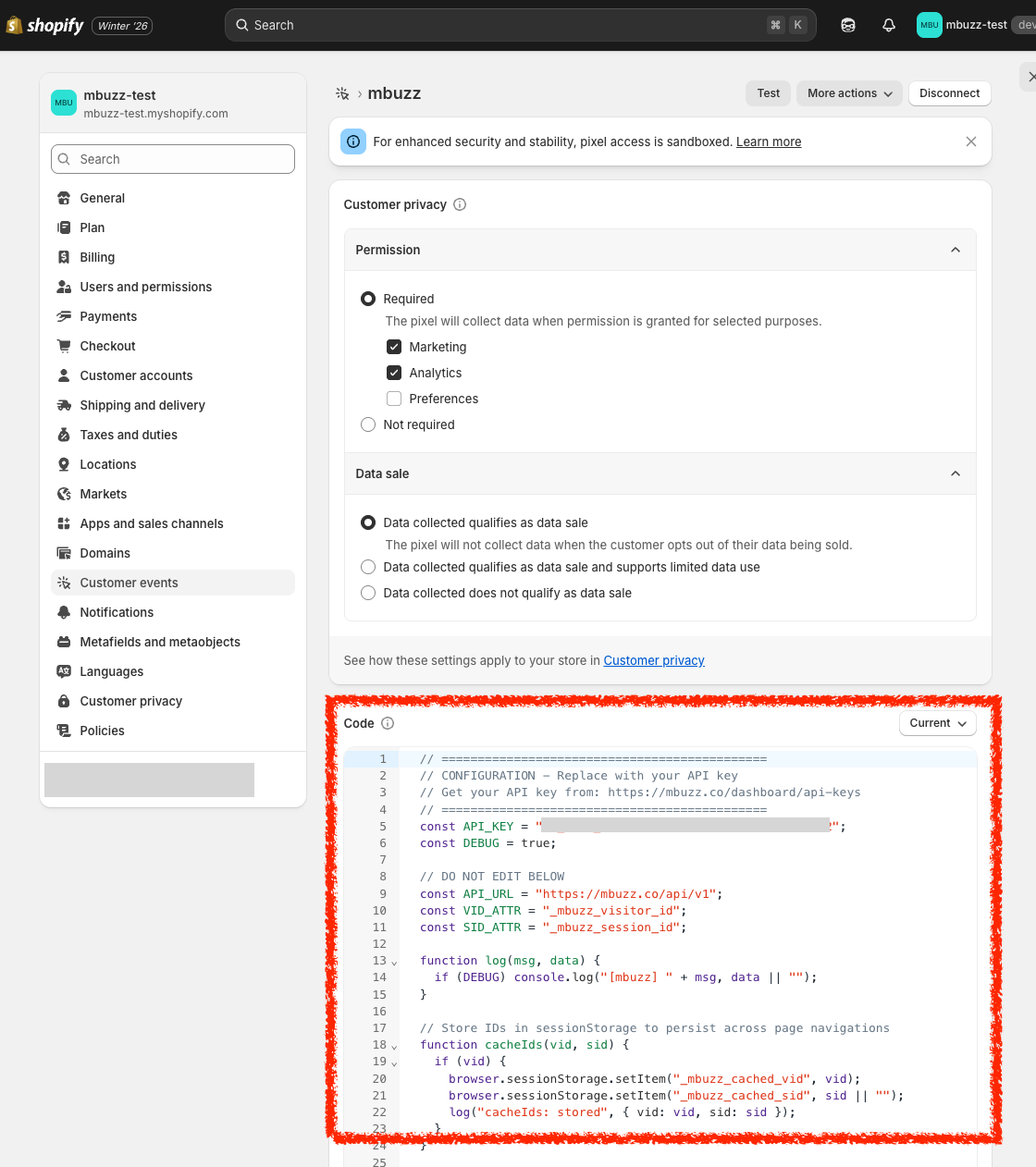

2. Paste the pixel code (replace YOUR_API_KEY with your actual key):

// CONFIGURATION
const API_KEY = "YOUR_API_KEY";
const DEBUG = false;

// DO NOT EDIT BELOW
const API_URL = "https://mbuzz.co/api/v1";
const VID_ATTR = "_mbuzz_visitor_id";
const SID_ATTR = "_mbuzz_session_id";

function log(msg, data) {
  if (DEBUG) console.log("[mbuzz] " + msg, data || "");
}

function cacheIds(vid, sid) {
  if (vid) {
    browser.sessionStorage.setItem("_mbuzz_cached_vid", vid);
    browser.sessionStorage.setItem("_mbuzz_cached_sid", sid || "");
  }
}

function getIds(checkout) {
  var attrs = (checkout && checkout.attributes) || [];
  var vid = null;
  var sid = null;
  for (var i = 0; i < attrs.length; i++) {
    if (attrs[i].key === VID_ATTR) vid = attrs[i].value;
    if (attrs[i].key === SID_ATTR) sid = attrs[i].value;
  }
  if (vid) { cacheIds(vid, sid); }
  return { vid: vid, sid: sid };
}

function trackEventWithIds(ids, eventType, props) {
  if (!ids.vid) { return; }
  var payload = {
    events: [{
      event_type: eventType,
      visitor_id: ids.vid,
      session_id: ids.sid,
      timestamp: new Date().toISOString(),
      properties: props || {}
    }]
  };
  fetch(API_URL + "/events", {
    method: "POST",
    headers: { "Authorization": "Bearer " + API_KEY, "Content-Type": "application/json" },
    body: JSON.stringify(payload)
  }).catch(function(e) { log("err", e.message); });
}

function getCachedIds(callback) {
  Promise.all([
    browser.sessionStorage.getItem("_mbuzz_cached_vid"),
    browser.sessionStorage.getItem("_mbuzz_cached_sid")
  ]).then(function(results) {
    callback({ vid: results[0], sid: results[1] });
  }).catch(function() {
    callback({ vid: null, sid: null });
  });
}

function identify(checkout, email, source) {
  var ids = getIds(checkout);
  if (ids.vid) {
    sendIdentify(email, ids.vid, source);
  } else {
    getCachedIds(function(cached) {
      sendIdentify(email, cached.vid, source);
    });
  }
}

function sendIdentify(email, vid, source) {
  var payload = {
    user_id: email,
    visitor_id: vid,
    traits: { email: email, source: source }
  };
  fetch(API_URL + "/identify", {
    method: "POST",
    headers: { "Authorization": "Bearer " + API_KEY, "Content-Type": "application/json" },
    body: JSON.stringify(payload)
  }).catch(function(e) { log("err", e.message); });
}

analytics.subscribe("checkout_started", function(evt) {
  var checkout = evt.data && evt.data.checkout;
  var ids = getIds(checkout);
  if (!ids.vid) { return; }
  var items = (checkout && checkout.lineItems) || [];
  if (items.length > 0) {
    var item = items[0];
    var variant = item.variant || {};
    var product = variant.product || {};
    var price = variant.price || {};
    trackEventWithIds(ids, "add_to_cart", {
      product_id: product.id,
      product_title: item.title,
      price: price.amount,
      quantity: item.quantity
    });
  }
  var total = checkout && checkout.totalPrice || {};
  trackEventWithIds(ids, "checkout", {
    total: total.amount,
    currency: checkout && checkout.currencyCode,
    item_count: items.length
  });
});

analytics.subscribe("checkout_contact_info_submitted", function(evt) {
  var checkout = evt.data && evt.data.checkout;
  var email = checkout && checkout.email;
  if (email) identify(checkout, email, "shopify_checkout");
});

analytics.subscribe("checkout_completed", function(evt) {
  var checkout = evt.data && evt.data.checkout;
  var email = checkout && checkout.email;
  if (email) identify(checkout, email, "shopify_checkout_completed");
});

1. Click Save → pixel should show as Connected

What Gets Tracked

Automatic Tracking

The Theme App Extension automatically tracks:

Webhook Events

Visitor Identification

How Visitors Are Tracked

The integration uses cookies to track visitors:

• _mbuzz_vid - Visitor ID (2 year expiry)
• _mbuzz_sid - Session ID (30 minute expiry)

These IDs are automatically stored in Shopify's cart note_attributes, which persist through checkout and appear in webhooks.

Cross-Device Attribution

When a customer:
1. Browses on mobile (visitor A created)
2. Returns on desktop (visitor B created)
3. Creates account on desktop → identify() links visitor B
4. Logs in on mobile → identify() links visitor A
5. Purchases → Full attribution across both devices

Manual Tracking

For custom events beyond automatic tracking:

// Track custom event
mbuzz.event('viewed_pricing', { plan: 'enterprise' });

// Track custom conversion (non-purchase)
mbuzz.conversion('demo_request', { revenue: 0 });

// Manual identify (if not using Shopify customer accounts)
mbuzz.identify(customerId, { email: 'customer@example.com' });

Configuration Options

Configure the Theme Extension in your theme customizer:

Backend Configuration

Add Shopify Domain to Account

In your mbuzz dashboard, configure:

1. Shopify Domain - Your xxx.myshopify.com domain
2. Webhook Secret - From Shopify Admin → Settings → Notifications → Webhooks

The webhook secret is used to verify incoming webhooks are genuinely from Shopify.

Testing

Verify Installation

1. Visit your store in an incognito window
2. Open browser DevTools → Application → Cookies
3. Confirm _mbuzz_vid and _mbuzz_sid cookies are set

Test Webhook Flow

1. Create a test order (use Shopify's test gateway)
2. Check mbuzz dashboard for the conversion
3. Verify attribution data matches the visitor's sessions

Troubleshooting

No Conversions Appearing

• Check webhook secret - Must match exactly (no spaces)
• Check Shopify domain - Must be your .myshopify.com domain
• Check visitor exists - Visitor must have browsed with mbuzz cookies set

Attribution Shows "Direct" Only

• Ensure visitor landed with UTM parameters or referrer
• Check that _mbuzz_vid cookie persisted through checkout
• Verify cart attributes contain _mbuzz_visitor_id

Webhook Not Received

1. Go to Shopify Admin → Settings → Notifications → Webhooks
2. Check webhook delivery logs for errors
3. Verify webhook URL is https://mbuzz.co/webhooks/shopify

Privacy & Data

Data Collected

• Visitor ID (anonymous, randomly generated)
• Session data (UTM, referrer, pages viewed)
• Order data (ID, total, customer email if provided)

Data NOT Collected

• Credit card information
• Customer passwords
• Full order line items

Cookie Consent

The mbuzz cookies are first-party and used for analytics. They may require consent under GDPR/CCPA. Consult your legal team for compliance requirements.

Known Limitations

"Buy it Now" Button

The "Buy it Now" button bypasses the cart, which means cart attributes (containing visitor_id) are not available. This is a known Shopify limitation.

Impact on attribution:

For "Buy it Now" with new guests, the conversion is recorded but may not link to prior sessions.

Recommendation: If full attribution is critical, consider disabling the "Buy it Now" button in your theme settings.

Test Orders

Test orders using Shopify's Bogus Gateway do not trigger webhooks. To test the full flow:

1. Create a Draft order in Shopify Admin
2. Mark it as Paid
3. This triggers the orders/paid webhook

Cross-Domain Checkout

Shopify's checkout runs on a separate domain with strict sandboxing. The checkout pixel cannot access cookies or localStorage from your storefront. This is why we use cart attributes to pass visitor data through checkout.
